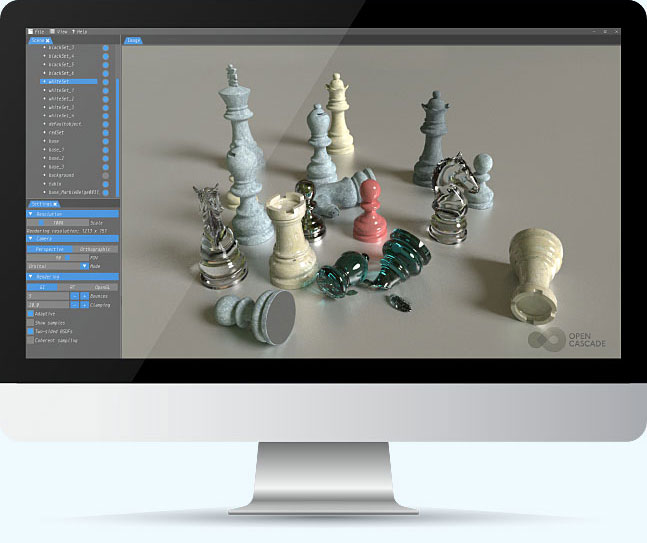

CADRays is a fast GPU accelerated, unbiased physically-based 3d model rendering software. Being a combination of efficiency (it uses an optimized GPU path tracing rendering engine and acceleration structures) and interactivity (it provides immediate feedback to adjusting parameters of materials, light sources and a camera with a fully interactive frame rate) the solution slightly uncovers the potential capacity of the widest range of products, components and solutions that Open Cascade can offer to customers.

CADRays is based on the industrial photorealistic rendering solution by OPEN CASCADE. Thanks to platform-independent design, GPU acceleration will work on both AMD and NVIDIA graphics cards or even on integrated Intel GPUs (with rendering performance limited only by the graphics hardware capabilities). With CADRays, as a perfect example of rendering tools, you can see (or show to others!) how your product will look in reality just having a digital model of a product. And physical correctness allows achieving stunning results faster, with minimum parameters to tweak.

Efficiency

Due to the usage of Open Cascade rendering solutions CADRays leverages a highly optimized GPU path tracing rendering engine and acceleration structures. Path tracing is an advanced special case of traditional ray tracing, the algorithm of which traces rays in the direction from a virtual camera through space.

Interactivity

This graphic rendering software’s on-screen viewport is the final rendering result. Thus it provides quick feedback to adjust the parameters of materials, light sources and a camera with a fully interactive frame rate. CADRays uses progressive rendering mode starting with a noisy image and then progressively refining it towards the final result. And, of course, you can stop the rendering process at a point where you find the noise level acceptable.

Materials

CADRays features a simple but robust double layered material model allowing to simulate most common material types such as glossy surfaces, glass, metal, or car paint. You can mix different material properties in the desired proportions in order to create a wide variety of realistic surfaces.

Camera

CADRays supports both perspective and orthographic camera models. The second one allows to render the scene without perspective effects which can be useful for technical and architectural visualization tasks.

CAD oriented

STEP, IGES, and BREP formats are supported out of the box as well as all modeling capabilities of OpenCASCADE Technology available through the interactive TCL console.

Mesh support

Conventional triangulation formats such as OBJ, PLY, STL are also supported. So you can combine CAD models and meshes in a single scene.

Download

The installers are available on the old version of the website, please, sign up or login if you have signed up earlier.

Tutorials

video tutorial on the use of CADRays can be found on our official YouTube channel.

Request a Quote for a custom rendering tool development

Open Cascade can provide you with a wide range of services based on CADRays, from the development of additional features to a complete custom rendering tool.


Disclaimer

The application is provided AS IS, without warranty of any kind.
Software Customization
The software’s functionality can be extended or personalized to attune CADRays to particular users’ needs. It can be also integrated into existing IT landscape.
Read More
3D Continuity
CADRays is fully compatible with all other Open Cascade software products and solutions as all of them are built on the Commercial Platform.
Found a bug or technical issue?
Please let us know about a bug
in the product to make it even better.
