CAD Processor

Powerful software dedicated to 3D data preparation and simplification for various downstream applications

Optimize CAD models
with dozens of algorithms

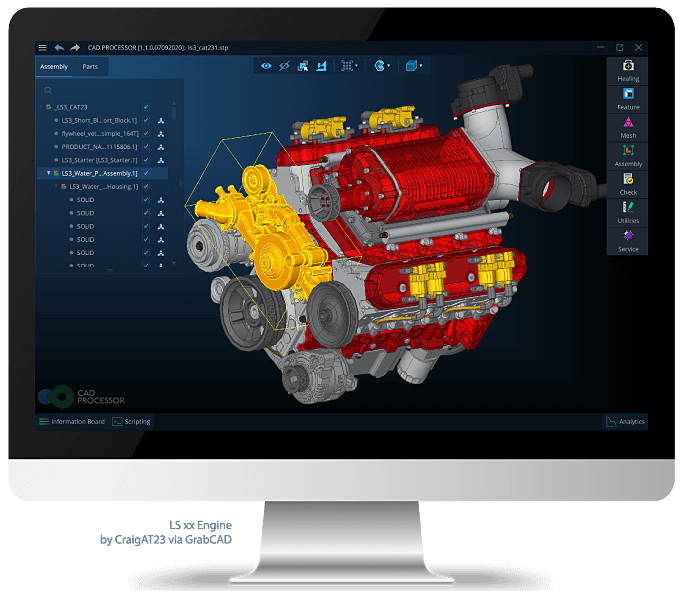

screen
CAD Processor is a software solution allowing preparation and simplification of 3D reference data for dedicated downstream applications. It offers a vast set of accurate, robust and efficient algorithms for effective repair and optimization of CAD parts and assemblies, exporting the data for the downstream use in the most convenient form.
Use CAD Processor at Full Capacity
icon

Preparation of scenes for Augmented, Virtual and Mixed Reality

icon

Geometry simplification for 3D model visualization on low performance devices

icon

Simplifying 3D data for numerical simulation (FEA mesh generation, CFD)

icon

Intellectual property protection — hiding parts, deformation of details, preserving outer geometry

icon

Quality control — comparison of manufactured part to reference CAD model

icon

Modelling a lightweight digital mock-up of parts or assemblies from heavy CAD files

icon

Restoration and optimization of 3D data integrity for manufacturing

icon

Outfitting design — reference geometry simplification for design processes

icon

Preparation of sheet metal components to fabrication (drawings generating, cost estimation)

wave
Сapabilities

CAD Processor supports native (as-designed) product hierarchy enabling the ability to optimize the original product assembly preserving all metadata (colors, layers, PMI, materials, etc.).

On the assembly level users can detect and delete invisible, small, non-solid parts (construction lines, vertices, etc.), hunt down duplicates and break sharing (instancing), bound parts, flatten assembly and traverse assembly hierarchy. Assembly obfuscation feature allows deformation of an assembly for intellectual property protection.

A part or sub-assembly can be extracted to a separate document in order to reduce memory usage, and let users focus on a single workpiece (e.g. for mounting).

Inconsistencies in 3D data resulting from different tolerance values used in different geometric modeling kernels may prevent the use of some transformation operators.

Therefore, applying a set of pre-conditioning (repair) algorithms is often necessary to unlock further processing of the imported digital mockup. CAD Processor is reach in both automatic and manual repair operators. The face stitching functionality is used to reconstruct topological sharing between adjacent faces. The face removal utility attempts to delete an interactively selected face from a model and fill its place with extensions of the neighboring faces.

Other healing features include gaps detection and filling, canonical geometry recognition, merging small edges and inverting parts.

Defeaturing allows elimination of specific CAD features in order to simplify models without losing the entire design intent. On the part level CAD Processor offers the following simplification operations: detection and suppression of holes and pockets, isolated features (pockets, engravings) removal, repatching and removing faces.

Identification of fillet chains with subsequent defeaturing is a highly demanded functionality which is often utilized in mechanical, automotive and aerospace industries. Holes suppression allows to get rid of blind and through cylindrical holes. It works for isolated holes which can be composed of several patches. Defeaturing of holes helps to reduce the number of faces/facets radically.

CAD Processor includes a wide variety of tools for carrying out inspection of models both visually and numerically for evaluation of their condition, finding issues and tracking simplification results.

The solution’s feature set encompasses inspection of contents, geometric tolerances, building bounding box to get a basic idea on the part spatial size. The open edges inspection utility displays the open edges of a selected model, the number of edges shared by one or less face and free boundaries.

The mass-inertia checker outputs volume, surface area, center of mass and axes of inertia of the selected objects. These values can be copied to external software for further analysis. CAD Processor also allows checking CAD models for mesh quality, self-intersections or mesh-vs-part deviations.

CAD Processor allows for interplay between exact B-Rep geometry and polygonal representations. The following key operators are available for mesh models: facets visualization, surface and volumetric mesh generation, mesh decimation and smoothing (Laplacian smoothing).

The polyhedrization algorithm allows reducing the number of facets while preserving the fiber-like shape of the input geometry. This operator works best for electrical harnesses simplification. Shrink wrapping is a way to generate computational-quality surface mesh eliminating possible imperfections of the model.

Constructing a convex hull on the nodes of the cad-agnostic or visualization mesh can work in either part or assembly mode.

High precision sheet metal working requires CAD simplification and optimization solutions to work with any CAD data to edit geometry, clean up corrupt or complex data, and deliver high quality sheet metal functionality.

CAD Processor sheet metal working related feature set allows recognizing flanges, bends, jogs, holes and cutouts in sheet metal parts, unfolding and validating precise flat patterns. Properties extraction (perimeters of holes, cutouts, lengths of cutting lines, etc.), thickness, bending allowances and radius calculation broaden the rich palette of algorithms.

The solution enables optimizing product development and production processes, minimizing downtime on the shop floor and calculating fabrication costs automatically.

wave
Product Line
The software’s functionality is offered in two editions
CAD Processor can be delivered in two fully functional forms distinguished by the set of capabilities precisely focusing on customers’ needs.
Desktop
A fully featured interactive desktop application.
Enterprise
In addition to the Desktop version’s feature set, it includes a command line interface (CLI) with rich scripting capabilities for automated batch processing run on a server.
Tailor the product to your workflow
Software Customization
The software’s functionality can be extended or personalized to attune CAD Processor to particular users’ needs. It can be also integrated into existing IT landscape.
Read More
3D Continuity
CAD Processor is fully compatible with all other Open Cascade software products and solutions as all of them are built on the Commercial Platform.
wave
Want to use the software for educational purposes?
If you are a student, educator or representative of an institution we can provide you with a discount.
